Multichannel-3061

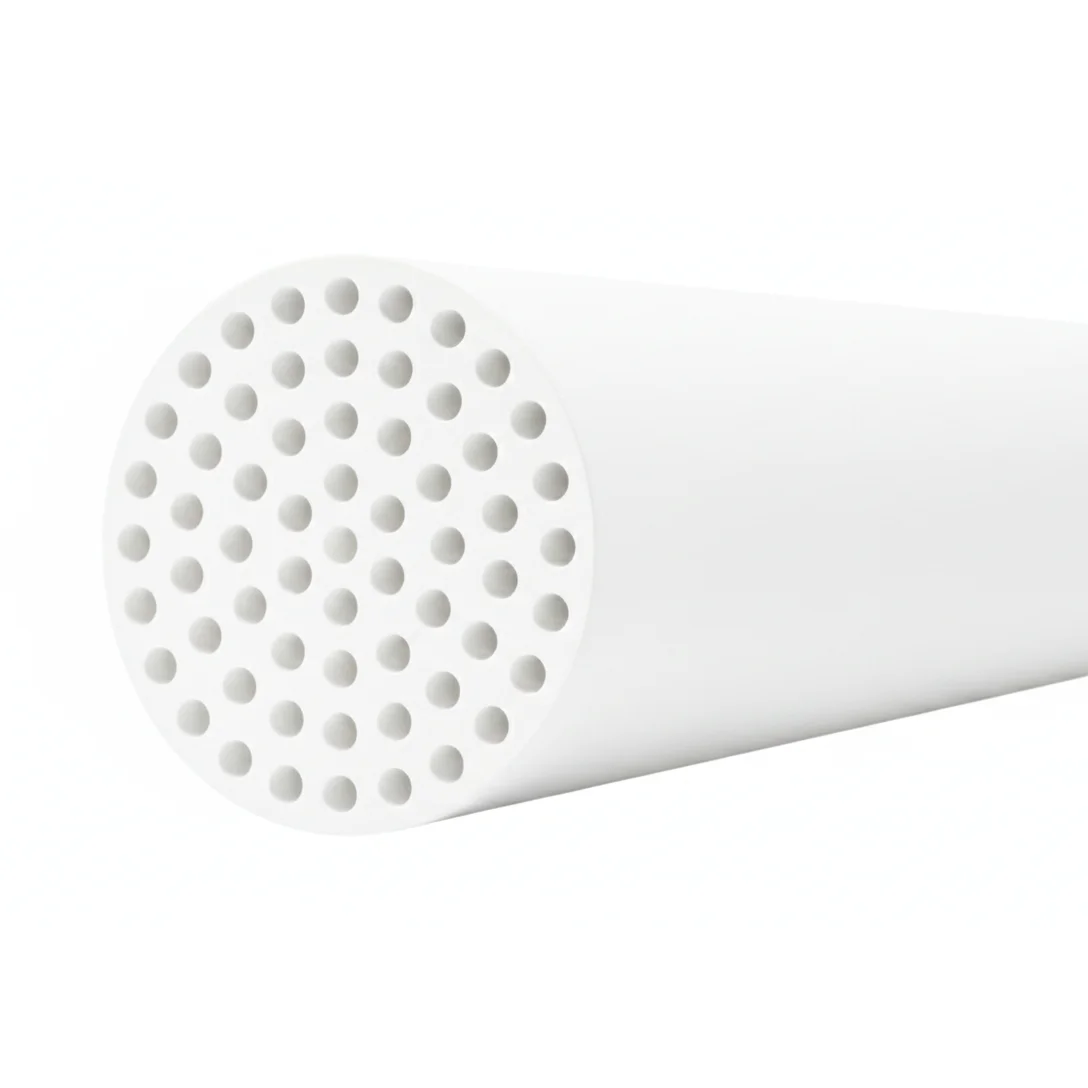

The NPC-M-3061 Multichannel Ceramic Membrane by Nano Palayesh Ceram (NPC) is designed to balance high channel density with mechanical robustness and low-fouling performance. Featuring 61 internal channels within a 30 mm outer diameter, this membrane provides efficient filtration capacity while maintaining structural strength for demanding industrial applications.
Manufactured using advanced ceramic materials such as Silicon Carbide, Zirconia, Alumina, Titania, Silica, and Mullite, the NPC-M-3061 offers exceptional resistance to aggressive chemicals, extreme pH environments, and high operating temperatures up to 300°C. Its inside-out filtration mode and axial flow path ensure stable permeation, easy cleaning, and long service life in microfiltration, ultrafiltration and Nanofiltration processes.
- Multichannel ceramic membrane with inside-out filtration mode
- High-density 61-channel configuration
- 30 mm outer diameter with compact modular design
- 2.0 mm channel inner diameter for low-fouling operation
- Axial feed flow path for rapid permeation
- Support materials: SiC, Zirconia, Alumina, Titania, Silica, Mullite
- Microfiltration (MF), Ultrafiltration (UF) and Nanofiltration (NF) separation layers
- Excellent chemical, thermal, and mechanical resistance
- Compatible with CIP and backflush cleaning protocols
- Modular design suitable for retrofit and new installations
- Model Code: NPC-M-3061
- Membrane Type: Multichannel Ceramic
- Filtration Mode: Inside-out (feed in channels)
- Outer Diameter (O.D): 30 mm
- Channel Count: 61 (circular cross-section)
- Channel Inner Diameter: 2.0 mm
- Membrane Length: Up to 1200 mm
- Filtration Surface Area: ~0.460 m²
- Flow Path: Axial feed, rapid permeation
- Max. Operating Pressure: Up to 10 bar (material/module-dependent)
- Operating Temperature: Up to 300 °C (material/module-dependent)
- pH Range: 0 – 14
- Porosity: 45 ± 5%
- Separation Layer Options:
- MF – 3 µm: ~2200–2500 LMH/bar
- MF – 1 µm: ~1800–2200 LMH/bar
- MF – 200 nm: ~1200–1600 LMH/bar
- MF/UF – 100 nm: ~800–1200 LMH/bar
- UF – 50 nm: ~400–800 LMH/bar
- UF – 20 nm: ~200–400 LMH/bar
- Food & Beverage: Clarification, microbial control, protein recovery
- Pharmaceutical & Biotech: Cell broth filtration, enzyme separation
- Petrochemical: Oil–water separation, catalyst recovery
- Water & Wastewater Treatment: MBR polishing, RO pretreatment
The NPC-M-3061 offers an optimized balance between high filtration capacity and long-term operational stability. Its 61-channel architecture enhances surface area while maintaining low fouling through controlled channel diameter design. Combined with extreme chemical and thermal resistance, CIP/backflush compatibility, and modular integration, this membrane delivers reliable performance, reduced downtime, and extended service life in continuous and batch industrial processes.
